Friday, October 17, 2008

Creating Attachments to emails and annotations

MS CRM stores attachments directly in the database which allows security to be enforced on attachments. If you delete a entity, all of its annotations are removed with it. By way of comparison this offers a lot more control than just saving a pathname for an attached file like GoldMine does with its RFC822 format emails.

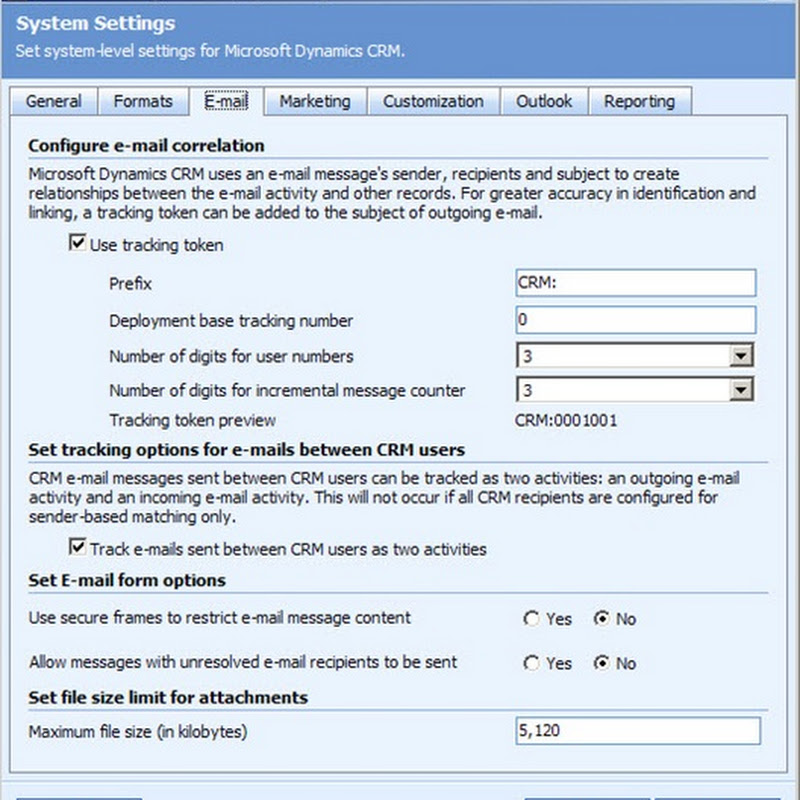

In MS CRM 4.0 the attachments are stored in a text field in the ActivityMimeAttachment table, and in an nvarchar(max) in the AnnotationBase table.  You can use SQL "like" comparator in a where clause against an nvarchar but not for a text field. nvarchar(max) was introduced with SQL 2005.

Creating an activitymimeattachment ( Email attachment )

The following is a code snippet from a larger method that creates the email entity as well. This code is inside a try catch for the email creation.

Notice that a file can be converted into a format that can be saved into the activitymimeattachment.body attribute by using the File.ReadAllBytes() and the Convert.ToBase64String() methods.

// If you have an email entity ready to be created and list of pathnames
// the following code will generate the related activitymimeattachment entities

Guid emailId = service.Create(newEmail);

 if (attachmentPathnames.Count > 0)
 {
     int attachmentCount = 1;

     foreach (var attachmentPathName in attachmentPathnames)
    {
     var emailAttachment = new activitymimeattachment
             {
                // Relate back to email activity
                activityid = CrmTypes.CreateLookup(EntityName.email.ToString(), emailId),
                filename = attachmentPathName.Substring(attachmentPathName.LastIndexOf('\\') + 1),
                subject = subject,
                attachmentnumber = CrmTypes.CreateCrmNumber(attachmentCount ++)
             };

     if (File.Exists(attachmentPathName))
     {
         byte[] fileContents = File.ReadAllBytes(attachmentPathName);
         emailAttachment.body = Convert.ToBase64String(fileContents);
         emailAttachment.filesize = CrmTypes.CreateCrmNumber((int) new FileInfo(attachmentPathName).Length);
         emailAttachment.mimetype = GetMimeType(attachmentPathName); // GetMimeType() Covered Below
     }
     else
     {
         // Handle condition where file doesn't exist
         emailAttachmentbody = "Attachment File Not Found.";
     }

     try
     {
         service.Create(emailAttachment);
     }

     catch (SoapException ex)
     {
         string errormsg = String.Format("Write Error for Email Attachment {0} error {1}", attachmentPathName, ex.Detail.InnerText);
         WriteErrorFile(errormsg);
     }
    }
 }

Creating an annotation (Notes attachment)

The following code creates an annotation which can belong to any entity with a Notes tab. In this case it is a Letter activity. This is very similar to the above code for the activitymimeattachment. One key difference is that an annotation can also just be a Note,  so it has an attribute just to specify if it is a note or an attachment.

Notice the isdocument attribute of the annotation. This needs to be set to true for an attachment. Also notice the overriddencreatedon attribute. The addition of this is one of the many improvements in MS CRM 4.0 and removed one of my pet peeves about MS CRM 3.0. When importing annotations in MS CRM 3.0 all of the annotations would be set to the import date which is useless for the end user. The ONLY way to change it was to go back with a SQL Update to change the createdon date. Now we have the overriddencreatedon attribute so that we don't have to "break the rules" and access the data tables directly.

Guid letterId = service.Create(newLetter); var newAnnotation = new annotation { objectid = CrmTypes.CreateLookup(EntityName.letter.ToString(), letterId), objecttypecode = CrmTypes.CreateEntityNameReference(EntityName.letter.ToString()), isdocument = CrmTypes.CreateCrmBoolean(false), ownerid = newLetter.ownerid, subject = subject, overriddencreatedon = newLetter.actualend, notetext = "File from import." }; if (hasAttachment) { if (File.Exists(attachmentPath)) { newAnnotation.isdocument = CrmTypes.CreateCrmBoolean(true), newAnnotation.filename = attachmentPath.Substring(attachmentPath.LastIndexOf('\\') + 1); byte[] fileContents = File.ReadAllBytes(attachmentPath); newAnnotation.documentbody = System.Convert.ToBase64String(fileContents); newAnnotation.filesize = CrmTypes.CreateCrmNumber((int)new FileInfo(attachmentPath).Length); newAnnotation.mimetype = GetMimeType(attachmentPath); } else { // Handle missing attachment
newAnnotation.subject += " - (attached document not found)"; } try { service.Create(newAnnotation); } catch (SoapException ex) { string errormsg = String.Format("Write Error for Letter Attachment {0} error {1}", attachmentPath, ex.Detail.InnerText); WriteErrorFile(errormsg); } }

The following method is a helper to look up a mimetype for a given file extension.

public string GetMimeType(string fileName)
{
    string mimeType;

    switch (System.IO.Path.GetExtension(fileName).ToLower())
    {
        case ".3dm": mimeType = "x-world/x-3dmf"; break;
        case ".3dmf": mimeType = "x-world/x-3dmf"; break;
        case ".a": mimeType = "application/octet-stream"; break;
        case ".aab": mimeType = "application/x-authorware-bin"; break;
        case ".aam": mimeType = "application/x-authorware-map"; break;
        case ".aas": mimeType = "application/x-authorware-seg"; break;
        case ".abc": mimeType = "text/vnd.abc"; break;
        case ".acgi": mimeType = "text/html"; break;
        case ".afl": mimeType = "video/animaflex"; break;
        case ".ai": mimeType = "application/postscript"; break;
        case ".aif": mimeType = "audio/aiff"; break;
        case ".aifc": mimeType = "audio/aiff"; break;
        case ".aiff": mimeType = "audio/aiff"; break;
        case ".aim": mimeType = "application/x-aim"; break;
        case ".aip": mimeType = "text/x-audiosoft-intra"; break;
        case ".ani": mimeType = "application/x-navi-animation"; break;
        case ".aos": mimeType = "application/x-nokia-9000-communicator-add-on-software"; break;
        case ".aps": mimeType = "application/mime"; break;
        case ".arc": mimeType = "application/octet-stream"; break;
        case ".arj": mimeType = "application/arj"; break;
        case ".art": mimeType = "image/x-jg"; break;
        case ".asf": mimeType = "video/x-ms-asf"; break;
        case ".asm": mimeType = "text/x-asm"; break;
        case ".asp": mimeType = "text/asp"; break;
        case ".asx": mimeType = "video/x-ms-asf"; break;
        case ".au": mimeType = "audio/basic"; break;
        case ".avi": mimeType = "video/avi"; break;
        case ".avs": mimeType = "video/avs-video"; break;
        case ".bcpio": mimeType = "application/x-bcpio"; break;
        case ".bin": mimeType = "application/octet-stream"; break;
        case ".bm": mimeType = "image/bmp"; break;
        case ".bmp": mimeType = "image/bmp"; break;
        case ".boo": mimeType = "application/book"; break;
        case ".book": mimeType = "application/book"; break;
        case ".boz": mimeType = "application/x-bzip2"; break;
        case ".bsh": mimeType = "application/x-bsh"; break;
        case ".bz": mimeType = "application/x-bzip"; break;
        case ".bz2": mimeType = "application/x-bzip2"; break;
        case ".c": mimeType = "text/plain"; break;
        case ".c++": mimeType = "text/plain"; break;
        case ".cat": mimeType = "application/vnd.ms-pki.seccat"; break;
        case ".cc": mimeType = "text/plain"; break;
        case ".ccad": mimeType = "application/clariscad"; break;
        case ".cco": mimeType = "application/x-cocoa"; break;
        case ".cdf": mimeType = "application/cdf"; break;
        case ".cer": mimeType = "application/pkix-cert"; break;
        case ".cha": mimeType = "application/x-chat"; break;
        case ".chat": mimeType = "application/x-chat"; break;
        case ".class": mimeType = "application/java"; break;
        case ".com": mimeType = "application/octet-stream"; break;
        case ".conf": mimeType = "text/plain"; break;
        case ".cpio": mimeType = "application/x-cpio"; break;
        case ".cpp": mimeType = "text/x-c"; break;
        case ".cpt": mimeType = "application/x-cpt"; break;
        case ".crl": mimeType = "application/pkcs-crl"; break;
        case ".crt": mimeType = "application/pkix-cert"; break;
        case ".csh": mimeType = "application/x-csh"; break;
        case ".css": mimeType = "text/css"; break;
        case ".cxx": mimeType = "text/plain"; break;
        case ".dcr": mimeType = "application/x-director"; break;
        case ".deepv": mimeType = "application/x-deepv"; break;
        case ".def": mimeType = "text/plain"; break;
        case ".der": mimeType = "application/x-x509-ca-cert"; break;
        case ".dif": mimeType = "video/x-dv"; break;
        case ".dir": mimeType = "application/x-director"; break;
        case ".dl": mimeType = "video/dl"; break;
        case ".doc": mimeType = "application/msword"; break;
        case ".dot": mimeType = "application/msword"; break;
        case ".dp": mimeType = "application/commonground"; break;
        case ".drw": mimeType = "application/drafting"; break;
        case ".dump": mimeType = "application/octet-stream"; break;
        case ".dv": mimeType = "video/x-dv"; break;
        case ".dvi": mimeType = "application/x-dvi"; break;
        case ".dwf": mimeType = "model/vnd.dwf"; break;
        case ".dwg": mimeType = "image/vnd.dwg"; break;
        case ".dxf": mimeType = "image/vnd.dwg"; break;
        case ".dxr": mimeType = "application/x-director"; break;
        case ".el": mimeType = "text/x-script.elisp"; break;
        case ".elc": mimeType = "application/x-elc"; break;
        case ".env": mimeType = "application/x-envoy"; break;
        case ".eps": mimeType = "application/postscript"; break;
        case ".es": mimeType = "application/x-esrehber"; break;
        case ".etx": mimeType = "text/x-setext"; break;
        case ".evy": mimeType = "application/envoy"; break;
        case ".exe": mimeType = "application/octet-stream"; break;
        case ".f": mimeType = "text/plain"; break;
        case ".f77": mimeType = "text/x-fortran"; break;
        case ".f90": mimeType = "text/plain"; break;
        case ".fdf": mimeType = "application/vnd.fdf"; break;
        case ".fif": mimeType = "image/fif"; break;
        case ".fli": mimeType = "video/fli"; break;
        case ".flo": mimeType = "image/florian"; break;
        case ".flx": mimeType = "text/vnd.fmi.flexstor"; break;
        case ".fmf": mimeType = "video/x-atomic3d-feature"; break;
        case ".for": mimeType = "text/x-fortran"; break;
        case ".fpx": mimeType = "image/vnd.fpx"; break;
        case ".frl": mimeType = "application/freeloader"; break;
        case ".funk": mimeType = "audio/make"; break;
        case ".g": mimeType = "text/plain"; break;
        case ".g3": mimeType = "image/g3fax"; break;
        case ".gif": mimeType = "image/gif"; break;
        case ".gl": mimeType = "video/gl"; break;
        case ".gsd": mimeType = "audio/x-gsm"; break;
        case ".gsm": mimeType = "audio/x-gsm"; break;
        case ".gsp": mimeType = "application/x-gsp"; break;
        case ".gss": mimeType = "application/x-gss"; break;
        case ".gtar": mimeType = "application/x-gtar"; break;
        case ".gz": mimeType = "application/x-gzip"; break;
        case ".gzip": mimeType = "application/x-gzip"; break;
        case ".h": mimeType = "text/plain"; break;
        case ".hdf": mimeType = "application/x-hdf"; break;
        case ".help": mimeType = "application/x-helpfile"; break;
        case ".hgl": mimeType = "application/vnd.hp-hpgl"; break;
        case ".hh": mimeType = "text/plain"; break;
        case ".hlb": mimeType = "text/x-script"; break;
        case ".hlp": mimeType = "application/hlp"; break;
        case ".hpg": mimeType = "application/vnd.hp-hpgl"; break;
        case ".hpgl": mimeType = "application/vnd.hp-hpgl"; break;
        case ".hqx": mimeType = "application/binhex"; break;
        case ".hta": mimeType = "application/hta"; break;
        case ".htc": mimeType = "text/x-component"; break;
        case ".htm": mimeType = "text/html"; break;
        case ".html": mimeType = "text/html"; break;
        case ".htmls": mimeType = "text/html"; break;
        case ".htt": mimeType = "text/webviewhtml"; break;
        case ".htx": mimeType = "text/html"; break;
        case ".ice": mimeType = "x-conference/x-cooltalk"; break;
        case ".ico": mimeType = "image/x-icon"; break;
        case ".idc": mimeType = "text/plain"; break;
        case ".ief": mimeType = "image/ief"; break;
        case ".iefs": mimeType = "image/ief"; break;
        case ".iges": mimeType = "application/iges"; break;
        case ".igs": mimeType = "application/iges"; break;
        case ".ima": mimeType = "application/x-ima"; break;
        case ".imap": mimeType = "application/x-httpd-imap"; break;
        case ".inf": mimeType = "application/inf"; break;
        case ".ins": mimeType = "application/x-internett-signup"; break;
        case ".ip": mimeType = "application/x-ip2"; break;
        case ".isu": mimeType = "video/x-isvideo"; break;
        case ".it": mimeType = "audio/it"; break;
        case ".iv": mimeType = "application/x-inventor"; break;
        case ".ivr": mimeType = "i-world/i-vrml"; break;
        case ".ivy": mimeType = "application/x-livescreen"; break;
        case ".jam": mimeType = "audio/x-jam"; break;
        case ".jav": mimeType = "text/plain"; break;
        case ".java": mimeType = "text/plain"; break;
        case ".jcm": mimeType = "application/x-java-commerce"; break;
        case ".jfif": mimeType = "image/jpeg"; break;
        case ".jfif-tbnl": mimeType = "image/jpeg"; break;
        case ".jpe": mimeType = "image/jpeg"; break;
        case ".jpeg": mimeType = "image/jpeg"; break;
        case ".jpg": mimeType = "image/jpeg"; break;
        case ".jps": mimeType = "image/x-jps"; break;
        case ".js": mimeType = "application/x-javascript"; break;
        case ".jut": mimeType = "image/jutvision"; break;
        case ".kar": mimeType = "audio/midi"; break;
        case ".ksh": mimeType = "application/x-ksh"; break;
        case ".la": mimeType = "audio/nspaudio"; break;
        case ".lam": mimeType = "audio/x-liveaudio"; break;
        case ".latex": mimeType = "application/x-latex"; break;
        case ".lha": mimeType = "application/octet-stream"; break;
        case ".lhx": mimeType = "application/octet-stream"; break;
        case ".list": mimeType = "text/plain"; break;
        case ".lma": mimeType = "audio/nspaudio"; break;
        case ".log": mimeType = "text/plain"; break;
        case ".lsp": mimeType = "application/x-lisp"; break;
        case ".lst": mimeType = "text/plain"; break;
        case ".lsx": mimeType = "text/x-la-asf"; break;
        case ".ltx": mimeType = "application/x-latex"; break;
        case ".lzh": mimeType = "application/octet-stream"; break;
        case ".lzx": mimeType = "application/octet-stream"; break;
        case ".m": mimeType = "text/plain"; break;
        case ".m1v": mimeType = "video/mpeg"; break;
        case ".m2a": mimeType = "audio/mpeg"; break;
        case ".m2v": mimeType = "video/mpeg"; break;
        case ".m3u": mimeType = "audio/x-mpequrl"; break;
        case ".man": mimeType = "application/x-troff-man"; break;
        case ".map": mimeType = "application/x-navimap"; break;
        case ".mar": mimeType = "text/plain"; break;
        case ".mbd": mimeType = "application/mbedlet"; break;
        case ".mc$": mimeType = "application/x-magic-cap-package-1.0"; break;
        case ".mcd": mimeType = "application/mcad"; break;
        case ".mcf": mimeType = "text/mcf"; break;
        case ".mcp": mimeType = "application/netmc"; break;
        case ".me": mimeType = "application/x-troff-me"; break;
        case ".mht": mimeType = "message/rfc822"; break;
        case ".mhtml": mimeType = "message/rfc822"; break;
        case ".mid": mimeType = "audio/midi"; break;
        case ".midi": mimeType = "audio/midi"; break;
        case ".mif": mimeType = "application/x-mif"; break;
        case ".mime": mimeType = "message/rfc822"; break;
        case ".mjf": mimeType = "audio/x-vnd.audioexplosion.mjuicemediafile"; break;
        case ".mjpg": mimeType = "video/x-motion-jpeg"; break;
        case ".mm": mimeType = "application/base64"; break;
        case ".mme": mimeType = "application/base64"; break;
        case ".mod": mimeType = "audio/mod"; break;
        case ".moov": mimeType = "video/quicktime"; break;
        case ".mov": mimeType = "video/quicktime"; break;
        case ".movie": mimeType = "video/x-sgi-movie"; break;
        case ".mp2": mimeType = "audio/mpeg"; break;
        case ".mp3": mimeType = "audio/mpeg"; break;
        case ".mpa": mimeType = "audio/mpeg"; break;
        case ".mpc": mimeType = "application/x-project"; break;
        case ".mpe": mimeType = "video/mpeg"; break;
        case ".mpeg": mimeType = "video/mpeg"; break;
        case ".mpg": mimeType = "video/mpeg"; break;
        case ".mpga": mimeType = "audio/mpeg"; break;
        case ".mpp": mimeType = "application/vnd.ms-project"; break;
        case ".mpt": mimeType = "application/vnd.ms-project"; break;
        case ".mpv": mimeType = "application/vnd.ms-project"; break;
        case ".mpx": mimeType = "application/vnd.ms-project"; break;
        case ".mrc": mimeType = "application/marc"; break;
        case ".ms": mimeType = "application/x-troff-ms"; break;
        case ".mv": mimeType = "video/x-sgi-movie"; break;
        case ".my": mimeType = "audio/make"; break;
        case ".mzz": mimeType = "application/x-vnd.audioexplosion.mzz"; break;
        case ".nap": mimeType = "image/naplps"; break;
        case ".naplps": mimeType = "image/naplps"; break;
        case ".nc": mimeType = "application/x-netcdf"; break;
        case ".ncm": mimeType = "application/vnd.nokia.configuration-message"; break;
        case ".nif": mimeType = "image/x-niff"; break;
        case ".niff": mimeType = "image/x-niff"; break;
        case ".nix": mimeType = "application/x-mix-transfer"; break;
        case ".nsc": mimeType = "application/x-conference"; break;
        case ".nvd": mimeType = "application/x-navidoc"; break;
        case ".o": mimeType = "application/octet-stream"; break;
        case ".oda": mimeType = "application/oda"; break;
        case ".omc": mimeType = "application/x-omc"; break;
        case ".omcd": mimeType = "application/x-omcdatamaker"; break;
        case ".omcr": mimeType = "application/x-omcregerator"; break;
        case ".p": mimeType = "text/x-pascal"; break;
        case ".p10": mimeType = "application/pkcs10"; break;
        case ".p12": mimeType = "application/pkcs-12"; break;
        case ".p7a": mimeType = "application/x-pkcs7-signature"; break;
        case ".p7c": mimeType = "application/pkcs7-mime"; break;
        case ".p7m": mimeType = "application/pkcs7-mime"; break;
        case ".p7r": mimeType = "application/x-pkcs7-certreqresp"; break;
        case ".p7s": mimeType = "application/pkcs7-signature"; break;
        case ".part": mimeType = "application/pro_eng"; break;
        case ".pas": mimeType = "text/pascal"; break;
        case ".pbm": mimeType = "image/x-portable-bitmap"; break;
        case ".pcl": mimeType = "application/vnd.hp-pcl"; break;
        case ".pct": mimeType = "image/x-pict"; break;
        case ".pcx": mimeType = "image/x-pcx"; break;
        case ".pdb": mimeType = "chemical/x-pdb"; break;
        case ".pdf": mimeType = "application/pdf"; break;
        case ".pfunk": mimeType = "audio/make"; break;
        case ".pgm": mimeType = "image/x-portable-greymap"; break;
        case ".pic": mimeType = "image/pict"; break;
        case ".pict": mimeType = "image/pict"; break;
        case ".pkg": mimeType = "application/x-newton-compatible-pkg"; break;
        case ".pko": mimeType = "application/vnd.ms-pki.pko"; break;
        case ".pl": mimeType = "text/plain"; break;
        case ".plx": mimeType = "application/x-pixclscript"; break;
        case ".pm": mimeType = "image/x-xpixmap"; break;
        case ".pm4": mimeType = "application/x-pagemaker"; break;
        case ".pm5": mimeType = "application/x-pagemaker"; break;
        case ".png": mimeType = "image/png"; break;
        case ".pnm": mimeType = "application/x-portable-anymap"; break;
        case ".pot": mimeType = "application/vnd.ms-powerpoint"; break;
        case ".pov": mimeType = "model/x-pov"; break;
        case ".ppa": mimeType = "application/vnd.ms-powerpoint"; break;
        case ".ppm": mimeType = "image/x-portable-pixmap"; break;
        case ".pps": mimeType = "application/vnd.ms-powerpoint"; break;
        case ".ppt": mimeType = "application/vnd.ms-powerpoint"; break;
        case ".ppz": mimeType = "application/vnd.ms-powerpoint"; break;
        case ".pre": mimeType = "application/x-freelance"; break;
        case ".prt": mimeType = "application/pro_eng"; break;
        case ".ps": mimeType = "application/postscript"; break;
        case ".psd": mimeType = "application/octet-stream"; break;
        case ".pvu": mimeType = "paleovu/x-pv"; break;
        case ".pwz": mimeType = "application/vnd.ms-powerpoint"; break;
        case ".py": mimeType = "text/x-script.phyton"; break;
        case ".pyc": mimeType = "applicaiton/x-bytecode.python"; break;
        case ".qcp": mimeType = "audio/vnd.qcelp"; break;
        case ".qd3": mimeType = "x-world/x-3dmf"; break;
        case ".qd3d": mimeType = "x-world/x-3dmf"; break;
        case ".qif": mimeType = "image/x-quicktime"; break;
        case ".qt": mimeType = "video/quicktime"; break;
        case ".qtc": mimeType = "video/x-qtc"; break;
        case ".qti": mimeType = "image/x-quicktime"; break;
        case ".qtif": mimeType = "image/x-quicktime"; break;
        case ".ra": mimeType = "audio/x-pn-realaudio"; break;
        case ".ram": mimeType = "audio/x-pn-realaudio"; break;
        case ".ras": mimeType = "application/x-cmu-raster"; break;
        case ".rast": mimeType = "image/cmu-raster"; break;
        case ".rexx": mimeType = "text/x-script.rexx"; break;
        case ".rf": mimeType = "image/vnd.rn-realflash"; break;
        case ".rgb": mimeType = "image/x-rgb"; break;
        case ".rm": mimeType = "application/vnd.rn-realmedia"; break;
        case ".rmi": mimeType = "audio/mid"; break;
        case ".rmm": mimeType = "audio/x-pn-realaudio"; break;
        case ".rmp": mimeType = "audio/x-pn-realaudio"; break;
        case ".rng": mimeType = "application/ringing-tones"; break;
        case ".rnx": mimeType = "application/vnd.rn-realplayer"; break;
        case ".roff": mimeType = "application/x-troff"; break;
        case ".rp": mimeType = "image/vnd.rn-realpix"; break;
        case ".rpm": mimeType = "audio/x-pn-realaudio-plugin"; break;
        case ".rt": mimeType = "text/richtext"; break;
        case ".rtf": mimeType = "text/richtext"; break;
        case ".rtx": mimeType = "text/richtext"; break;
        case ".rv": mimeType = "video/vnd.rn-realvideo"; break;
        case ".s": mimeType = "text/x-asm"; break;
        case ".s3m": mimeType = "audio/s3m"; break;
        case ".saveme": mimeType = "application/octet-stream"; break;
        case ".sbk": mimeType = "application/x-tbook"; break;
        case ".scm": mimeType = "application/x-lotusscreencam"; break;
        case ".sdml": mimeType = "text/plain"; break;
        case ".sdp": mimeType = "application/sdp"; break;
        case ".sdr": mimeType = "application/sounder"; break;
        case ".sea": mimeType = "application/sea"; break;
        case ".set": mimeType = "application/set"; break;
        case ".sgm": mimeType = "text/sgml"; break;
        case ".sgml": mimeType = "text/sgml"; break;
        case ".sh": mimeType = "application/x-sh"; break;
        case ".shar": mimeType = "application/x-shar"; break;
        case ".shtml": mimeType = "text/html"; break;
        case ".sid": mimeType = "audio/x-psid"; break;
        case ".sit": mimeType = "application/x-sit"; break;
        case ".skd": mimeType = "application/x-koan"; break;
        case ".skm": mimeType = "application/x-koan"; break;
        case ".skp": mimeType = "application/x-koan"; break;
        case ".skt": mimeType = "application/x-koan"; break;
        case ".sl": mimeType = "application/x-seelogo"; break;
        case ".smi": mimeType = "application/smil"; break;
        case ".smil": mimeType = "application/smil"; break;
        case ".snd": mimeType = "audio/basic"; break;
        case ".sol": mimeType = "application/solids"; break;
        case ".spc": mimeType = "text/x-speech"; break;
        case ".spl": mimeType = "application/futuresplash"; break;
        case ".spr": mimeType = "application/x-sprite"; break;
        case ".sprite": mimeType = "application/x-sprite"; break;
        case ".src": mimeType = "application/x-wais-source"; break;
        case ".ssi": mimeType = "text/x-server-parsed-html"; break;
        case ".ssm": mimeType = "application/streamingmedia"; break;
        case ".sst": mimeType = "application/vnd.ms-pki.certstore"; break;
        case ".step": mimeType = "application/step"; break;
        case ".stl": mimeType = "application/sla"; break;
        case ".stp": mimeType = "application/step"; break;
        case ".sv4cpio": mimeType = "application/x-sv4cpio"; break;
        case ".sv4crc": mimeType = "application/x-sv4crc"; break;
        case ".svf": mimeType = "image/vnd.dwg"; break;
        case ".svr": mimeType = "application/x-world"; break;
        case ".swf": mimeType = "application/x-shockwave-flash"; break;
        case ".t": mimeType = "application/x-troff"; break;
        case ".talk": mimeType = "text/x-speech"; break;
        case ".tar": mimeType = "application/x-tar"; break;
        case ".tbk": mimeType = "application/toolbook"; break;
        case ".tcl": mimeType = "application/x-tcl"; break;
        case ".tcsh": mimeType = "text/x-script.tcsh"; break;
        case ".tex": mimeType = "application/x-tex"; break;
        case ".texi": mimeType = "application/x-texinfo"; break;
        case ".texinfo": mimeType = "application/x-texinfo"; break;
        case ".text": mimeType = "text/plain"; break;
        case ".tgz": mimeType = "application/x-compressed"; break;
        case ".tif": mimeType = "image/tiff"; break;
        case ".tiff": mimeType = "image/tiff"; break;
        case ".tr": mimeType = "application/x-troff"; break;
        case ".tsi": mimeType = "audio/tsp-audio"; break;
        case ".tsp": mimeType = "application/dsptype"; break;
        case ".tsv": mimeType = "text/tab-separated-values"; break;
        case ".turbot": mimeType = "image/florian"; break;
        case ".txt": mimeType = "text/plain"; break;
        case ".uil": mimeType = "text/x-uil"; break;
        case ".uni": mimeType = "text/uri-list"; break;
        case ".unis": mimeType = "text/uri-list"; break;
        case ".unv": mimeType = "application/i-deas"; break;
        case ".uri": mimeType = "text/uri-list"; break;
        case ".uris": mimeType = "text/uri-list"; break;
        case ".ustar": mimeType = "application/x-ustar"; break;
        case ".uu": mimeType = "application/octet-stream"; break;
        case ".uue": mimeType = "text/x-uuencode"; break;
        case ".vcd": mimeType = "application/x-cdlink"; break;
        case ".vcs": mimeType = "text/x-vcalendar"; break;
        case ".vda": mimeType = "application/vda"; break;
        case ".vdo": mimeType = "video/vdo"; break;
        case ".vew": mimeType = "application/groupwise"; break;
        case ".viv": mimeType = "video/vivo"; break;
        case ".vivo": mimeType = "video/vivo"; break;
        case ".vmd": mimeType = "application/vocaltec-media-desc"; break;
        case ".vmf": mimeType = "application/vocaltec-media-file"; break;
        case ".voc": mimeType = "audio/voc"; break;
        case ".vos": mimeType = "video/vosaic"; break;
        case ".vox": mimeType = "audio/voxware"; break;
        case ".vqe": mimeType = "audio/x-twinvq-plugin"; break;
        case ".vqf": mimeType = "audio/x-twinvq"; break;
        case ".vql": mimeType = "audio/x-twinvq-plugin"; break;
        case ".vrml": mimeType = "application/x-vrml"; break;
        case ".vrt": mimeType = "x-world/x-vrt"; break;
        case ".vsd": mimeType = "application/x-visio"; break;
        case ".vst": mimeType = "application/x-visio"; break;
        case ".vsw": mimeType = "application/x-visio"; break;
        case ".w60": mimeType = "application/wordperfect6.0"; break;
        case ".w61": mimeType = "application/wordperfect6.1"; break;
        case ".w6w": mimeType = "application/msword"; break;
        case ".wav": mimeType = "audio/wav"; break;
        case ".wb1": mimeType = "application/x-qpro"; break;
        case ".wbmp": mimeType = "image/vnd.wap.wbmp"; break;
        case ".web": mimeType = "application/vnd.xara"; break;
        case ".wiz": mimeType = "application/msword"; break;
        case ".wk1": mimeType = "application/x-123"; break;
        case ".wmf": mimeType = "windows/metafile"; break;
        case ".wml": mimeType = "text/vnd.wap.wml"; break;
        case ".wmlc": mimeType = "application/vnd.wap.wmlc"; break;
        case ".wmls": mimeType = "text/vnd.wap.wmlscript"; break;
        case ".wmlsc": mimeType = "application/vnd.wap.wmlscriptc"; break;
        case ".word": mimeType = "application/msword"; break;
        case ".wp": mimeType = "application/wordperfect"; break;
        case ".wp5": mimeType = "application/wordperfect"; break;
        case ".wp6": mimeType = "application/wordperfect"; break;
        case ".wpd": mimeType = "application/wordperfect"; break;
        case ".wq1": mimeType = "application/x-lotus"; break;
        case ".wri": mimeType = "application/mswrite"; break;
        case ".wrl": mimeType = "application/x-world"; break;
        case ".wrz": mimeType = "x-world/x-vrml"; break;
        case ".wsc": mimeType = "text/scriplet"; break;
        case ".wsrc": mimeType = "application/x-wais-source"; break;
        case ".wtk": mimeType = "application/x-wintalk"; break;
        case ".xbm": mimeType = "image/x-xbitmap"; break;
        case ".xdr": mimeType = "video/x-amt-demorun"; break;
        case ".xgz": mimeType = "xgl/drawing"; break;
        case ".xif": mimeType = "image/vnd.xiff"; break;
        case ".xl": mimeType = "application/excel"; break;
        case ".xla": mimeType = "application/vnd.ms-excel"; break;
        case ".xlb": mimeType = "application/vnd.ms-excel"; break;
        case ".xlc": mimeType = "application/vnd.ms-excel"; break;
        case ".xld": mimeType = "application/vnd.ms-excel"; break;
        case ".xlk": mimeType = "application/vnd.ms-excel"; break;
        case ".xll": mimeType = "application/vnd.ms-excel"; break;
        case ".xlm": mimeType = "application/vnd.ms-excel"; break;
        case ".xls": mimeType = "application/vnd.ms-excel"; break;
        case ".xlt": mimeType = "application/vnd.ms-excel"; break;
        case ".xlv": mimeType = "application/vnd.ms-excel"; break;
        case ".xlw": mimeType = "application/vnd.ms-excel"; break;
        case ".xm": mimeType = "audio/xm"; break;
        case ".xml": mimeType = "application/xml"; break;
        case ".xmz": mimeType = "xgl/movie"; break;
        case ".xpix": mimeType = "application/x-vnd.ls-xpix"; break;
        case ".xpm": mimeType = "image/xpm"; break;
        case ".x-png": mimeType = "image/png"; break;
        case ".xsr": mimeType = "video/x-amt-showrun"; break;
        case ".xwd": mimeType = "image/x-xwd"; break;
        case ".xyz": mimeType = "chemical/x-pdb"; break;
        case ".z": mimeType = "application/x-compressed"; break;
        case ".zip": mimeType = "application/zip"; break;
        case ".zoo": mimeType = "application/octet-stream"; break;
        case ".zsh": mimeType = "text/x-script.zsh"; break;
        default: mimeType = "application/octet-stream"; break;
    }
    return mimeType;
}

MS CRM 4.0 Attachment Size Limitation

MS CRM stores attachments directly in the database, and there is a 5Mb attachment limit by default with CRM 4.0. This limit is set for good reason, and if you want to increase it, you may want to see if it starts to impact your system performance.

This can be overwritten by doing the following:

  1. Changing the maxRequestLength value in the main CRM web.config file. By default it is 8Mb which doesn't impact the System Setting below. However if you increase the Maximum File size above the maxRequestLength you will have problems.

    <system.web>
        <httpRuntime executionTimeout="300" maxRequestLength="8192"/>
    </system.web>

    There are many examples on the web that show something like the following which pretty well removes any size constraints from the web.config.

    <httpRuntime executionTimeout="9999" maxRequestLength="99999"/>

  2. Save the web.config and restart IIS.
  3. For MS CRM 4.0 that just leaves adjusting the Maximum file size in System Settings with default of 5,120 Kb shown below to something higher but less than the maxRequestLength.

emailAtttachmentSize

Alternate 3. In MS CRM 3.0 there is a registry setting that needs to be set instead. In HKEY_Local_Machine\Software\Microsoft\MSCRM
the maxuploadfilesize value can be changed from it's 5Mb default.

2 comments:

Pranav Shah said...

Hello,

My code is something like this and it throws an error "Changes to attachments for an email in pending or sending status is not allowed.". Do I have to set some specific status for the email created earlier that is attached with this ActivityMimeAttachment?

======================================
byte[] byteData = GetSalesInvoiceReportPDF();
//byteData = System.Text.Encoding.UTF8.GetBytes(data);
string encodedData = System.Convert.ToBase64String(byteData);

//TargetCreateActivityMimeAttachment attachment = new TargetCreateActivityMimeAttachment();
activitymimeattachment attachment = new activitymimeattachment();

attachment.mimetype = "application/pdf";
attachment.attachmentnumber = new CrmNumber(1);
attachment.subject = "Sales Invoice Number 9999";
attachment.activityid = new Lookup("email", emailActivityId);
attachment.body = encodedData;
attachment.filesize = new CrmNumber(byteData.Length);
attachment.filename = "invoice.pdf";
Guid attachmentId = crmService.Create(attachment);
=================================

Mark Kovalcson said...

Based on the other code you emailed me I believe the problem is setting the direction of your email before you have added the attachment. You do not need to set this unless it is a historical email that you are importing and setting as sent or recieved.
